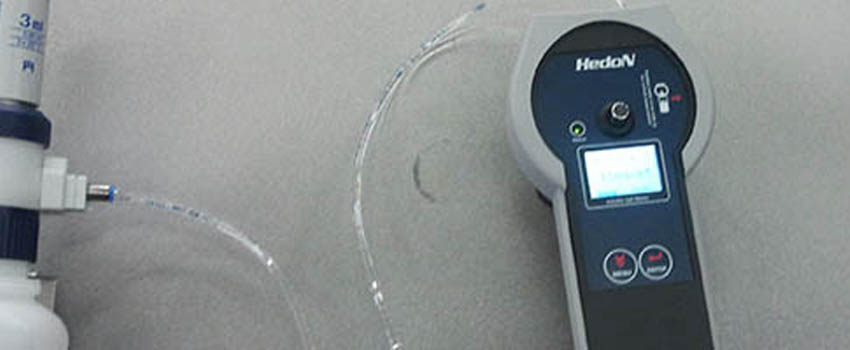

Stainless Steel Contamination Testing

Contamination testing verifies that a stainless or duplex stainless steel surface is free of foreign material that would compromise its corrosion resistance or cause cracking in service. The alloy itself may be entirely correct while the surface has been contaminated during fabrication — by carbon steel tooling, grinding debris, marking materials, galvanised fixtures or handling. Testing is carried out on site at your fabrication yard or plant, with laboratory analysis arranged through accredited laboratories where the method requires it.

Why surface contamination matters

Embedded iron particles rust in service and initiate pitting in the parent material, so a correctly specified stainless component fails as though the wrong grade had been supplied. Chlorides left on austenitic stainless before welding or heat treatment can lead to stress corrosion cracking. Low-melting-point metals such as zinc, copper or lead cause liquid metal embrittlement when the surface is heated, producing intergranular cracking during welding or post-weld heat treatment. In each case the damage is done by something that was never part of the material specification.

Test methods

Ferroxyl test — ASTM A380

A potassium ferricyanide and nitric acid solution is applied to the prepared surface. Free or embedded iron reacts to produce distinct blue indications within a short observation period, showing both the presence and the location of contamination. It is the most sensitive of the free-iron tests and is used where a client specification calls for positive evidence of cleanliness. The surface is neutralised and cleaned after testing.

Copper sulphate test — ASTM A967

An acidified copper sulphate solution is applied and held for the specified period. Free iron plates out copper, giving a visible copper-coloured deposit. This method is applicable to austenitic and other grades containing at least sixteen percent chromium; it is not used on martensitic or ferritic grades below that level, where the base material itself produces a misleading result.

Water immersion and high humidity — ASTM A967

Non-destructive alternatives where chemical application to the finished surface is not permitted. The component is subjected to repeated distilled water immersion and drying cycles, or held in a controlled high-humidity environment, and then examined for rust staining. These take longer than the chemical tests but leave no residue and suit finished or coated-ready surfaces.

Halide and chloride contamination

Surface sampling and analysis to establish chloride levels against the limit stated in your specification, typically applied before welding, heat treatment or hydrotest. This is routinely specified on austenitic stainless in oil and gas fabrication, where the consequence of chloride contamination appears as cracking well after handover.

Low-melting-point metal contamination

Detection of zinc, copper, lead, tin and cadmium picked up from galvanised structures, brass or copper tooling, paint, marking materials or temporary supports. Assessment combines visual examination under controlled lighting with surface sampling and chemical analysis. This is the check most often written into oil and gas fabrication contracts by name, and the one most often overlooked until a weld cracks.

When testing is carried out

• On incoming stainless and duplex material before fabrication begins
• After grinding, cutting or mechanical cleaning operations
• Before welding or post-weld heat treatment, where low-melting-point metals are a risk
• Following passivation or pickling, to verify treatment effectiveness
• On finished products before shipment or client acceptance
• During investigation of premature corrosion or in-service cracking

Accreditation and coverage

ITMAD is accredited to ISO/IEC 17020 as an inspection body, is an ADNOC approved inspection contractor, and is listed on the Abu Dhabi City Municipality register of Approved Third Party Inspection Bodies. Certificates are issued in the format required by the governing authority, including Dubai Municipality and the Dubai free zone authorities, and testing is carried out across Dubai, Abu Dhabi, Sharjah and the northern Emirates.

What you receive

• A test report identifying the method applied and the standard or specification it follows
• The areas tested, recorded by location or weld number
• Results with photographic evidence of any indications found
• Assessment against the acceptance criteria in your specification
• Where contamination is found, its extent, so the affected area can be reworked and retested

Related work

Contamination testing is normally carried out alongside verification of passivation or pickling, positive material identification and weld inspection. Where several checks are required on the same fabrication, they can be scheduled in one attendance to limit disruption to your programme.
